Podium
Outdoor Free-standing Display System
ds
dst
ssDescription
Podium displays are rugged outdoor digital display systems, with single/dual integrated high bright LCD displays, this freestanding unit can be configured to many interactive applications, and is sized to fit within a standard transit shelter as a poster box replacement. ProCAP multi-touch is included as standard, a range of playback, network and peripheral devices is available according to required specification and region, the system supports remote reporting via network connection.
Specifications
- Environment
- Indoor, Semi-Outdoor, Outdoor
- Platform
- Podium
- Features
- High Brightness, Direct Air Cooling, Impact Resistant Glass, Weather Resistant to IP56
- Environmental Management
- Direct Air Cooled, Sensor Driven Self-Governing, Two Stage Filtration
- Market
- Street Furniture, Digital-out-of-Home, Transit
- Resolution
- 1920×1080 | 3840×2160
- Display Size
- 32 | 43, 49, | 55, 65, 75, 86
- Brightness
- 1500 nits | 2000 nits |2500 nits
- Orientation
- Portrait
- Faces
- Double
Tested and Validated Performance
All our listed products have been fully tested and validated to perform according to their specification.:
- to perform without loss of performance across the full outdoor temperature range..
- accredited to environmental ingress protection standards..
- to meet all applicable international safety standards..
- to be the best-in-class for their size and market.

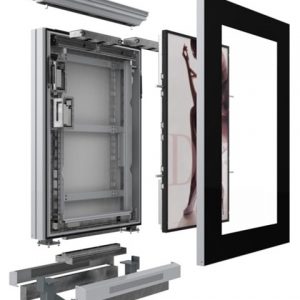

System Modularity
The design of all our display systems uses the strategy of integrated technology & equipment modules, built within discreet chassis trays, for connection to a main cable harness within the enclosure. All modules are field replaceable individually, to maximise operational uptime.
The system allows field upgrade and expansion, within the physical confines of the external skin and ID of the enclosure.
LCD panels from the tier 1 manufacturers are supported, in a range of luminance, for both indoor and outdoor applications.
Display cassettes hinge to allow fast & easy access to equipment modules positioned behind them, fascia panels can have a projective capacitive [PCT] foil added to the inside of their cover glass to make them interactive.
Where possible technology components are open-source and available locally from multiple sources through distribution.

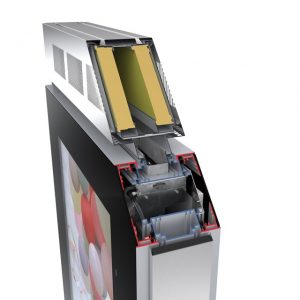

Direct Air Cooling Systems [DACS]
Utilizing a patented two stage filtration system, these outdoor display systems remove dirt and debris first, followed by hydrophobic filters to remove airborne water molecules and microscopic contaminants.
Passive cooling systems are vastly more reliable than active cooling systems using sub-ambient air-conditioning, where thermal shock and rapid rate-of-change thermal conditions cause component stress and premature failure.
DACS enables optimal performance and safe operation within the widest possible temperature range, lowest possible power usage, with minimal noise generation.
